Price
$752.00
Specifications
Model Number
HTR-K40
Materials
SS, SS Bellows, Anodized Aluminum
RoHS Compliant
Yes
Max. Bake Temperature
150ºC
Max. Vacuum Level
1x10E-8 Torr
Axial Load
6 lb. maximum
Lateral Load
10 lb. maximum
Resolution - Rotary Scale
5° (Degrees)
Torque
250 in-oz maximum
Speed
1000 RPM
XCart Product Code
102150
stock level (qty)
993
Images
Variations
Product Category
Additional Categories
Detailed Images

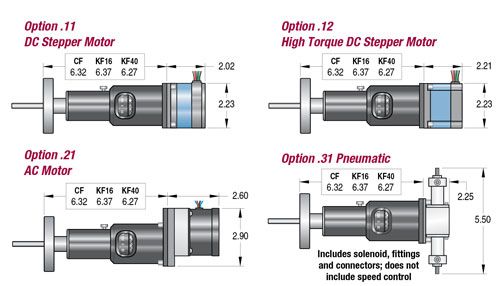

Outline Drawing
102150_1.pdf (250.74 KB)
102150.11.pdf (314.06 KB)
102150.12.pdf (333.14 KB)
102150.21.pdf (287.82 KB)
102150.31_1.pdf (349.63 KB)
eDrawing
102150_1.eprt (254.85 KB)
102150-113086.eprt (270.55 KB)
102150.11.eprt (388.62 KB)
102150.12.eprt (472.9 KB)
102150.21.eprt (324.36 KB)
102150.31_1.eprt (304.67 KB)
102150.31-112687.eprt (344.63 KB)
3D Model - Zipped STEP file
102150_1.zip (1.17 MB)
102150-113086.zip (1.13 MB)
102150.11.zip (1.43 MB)
102150.12.zip (1.91 MB)
102150.21.zip (1.36 MB)
102150.31_1.zip (1.33 MB)
102150.31-112687.zip (1.41 MB)
XCart Product ID
16444
