High (HV) and Ultrahigh (UHV) Motion and Manipulation

AGP offers a line of Linear, Push-Pull, Wobble Sticks, and Rotary feedthroughs designed to meet the demands of motion and manipulation in ultrahigh (UHV) and high in-vacuum (HV) environments.

Manufactured with stainless steel bearings (we never use bushings that can wear out) and sealed using AM-350 edge-welded bellows, our linear and rotary feedthroughs are the most reliable and robust available anywhere.

The links above provide access to our line of motion feedthroughs as well as our stepper motor and pneumatic actuator options.

 Please refer to each category below for complete specifications.



Motion and Manipulation Feedthrough Material Specifications
Material
  • Internal Body
  • Housing
  • Bellows
  • Elastomer Sealed Shaft Rotary Products
  • Other Products


304 Stainless Steel
Anodized Aluminum 2011
Edge-Welded AM-350
See that Category Main Page
See that Category Main Page

Motion and Manipulation Vacuum Range Specifications
Vacuum Range
  • UHV, Ultrahigh vacuum
  • HV, High vacuum

1x10-10 Torr
1x10-8 Torr
Motion and Manipulation Temperature Range Specifications
Temperature Range
  • Feedthrough
  • Flange Mount, Conflat
  • Flange Mount, ISO


250ºC
450ºC
150ºC

* Overall assembly ratings must be adjusted to that of the lowest-rated component.
Motion and Manipulation, Other Specifications
Load, Resolution, and Speed
  • Axial, Maximum
  • Lateral, Maximum at 2 inches from flange face
  • Rotary Products only, Torque
  • Rotary Products only, Axial
  • Rotary Products only, Lateral


5 lb
5 lb
250 in-oz maximum
6 lb maximum
10 maximum

  • Linear Scale
  • Rotary Scale
  • Rotary Products only, Rotary Scale
0.025 Inch
0.001 Inch
5º
  • Rotary Products only, Speed
1,000 RPM Maximum
Section (Layout)
Left Column Content
Callout Image

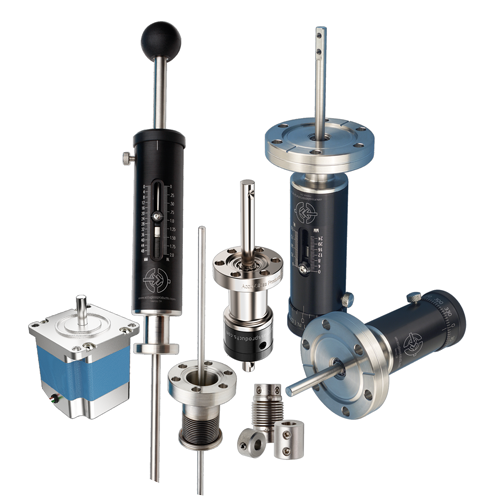

Motion + Manipulation Feedthroughs
Image Callout
'Push-Pull' Linear Motion Feedthroughs
139
135
High Vacuum Rotary Motion Feedthroughs
248
181
'Bellows Seal' Linear Motion Feedthroughs
350
124
Motorized Actuator Options
96
409
'Wobble-Stick' Feedthroughs and Motion Accessories
222
457
'Bellows Seal' Rotary Motion Feedthroughs
370
412
Text

High (HV) and Ultrahigh (UHV) Motion and Manipulation

AGP offers a line of Linear, Push-Pull, Wobble Sticks, and Rotary feedthroughs designed to meet the demands of motion and manipulation in ultrahigh (UHV) and high in-vacuum (HV) environments.

Manufactured with stainless steel bearings (we never use bushings that can wear out) and sealed using AM-350 edge-welded bellows, our linear and rotary feedthroughs are the most reliable and robust available anywhere.

The links above provide access to our line of motion feedthroughs as well as our stepper motor and pneumatic actuator options.

 Please refer to each category below for complete specifications.

Right Column Content
Text

Features

  • Precision Linear Motion
  • Push-Pull Linear Motion
  • Wobble-Stick Linear/Swivel Motion
  • Precision Rotary Motion
  • Basic Rotary Motion
  • Manual, Motor, and Pneumatic Actuators
  • 1/8 and 1/4 Inch Shaft Accessories

Specifications1

Linear Motion, Precision
Travel, Linear1, 2, and 4 in
Resolution, Dial / Linear Scale.001 / .025 in
ActuationManual
Motorization Options11, and 12
Linear Motion, Push-Pull
Travel, Linear1, and 2 in
Resolution, Linear Scale.025 in
ActuationManual
Motorization OptionsNone
Linear Motion, Wobble-Stick
Travel, Linear1/2, and 1 in
ResolutionNone
ActuationManual
Motorization OptionsNone
Rotary Motion, Precision
Travel, Angular360°
Resolution, Dial5°
ActuationManual
Motorization Options11, 12, 21, and 31
Rotary Motion, Basic
Travel, Angular360°
Resolution, DialNone
ActuationManual
Motorization OptionsNone
Motorization Options
DC Step MotorOption-11
DC Step Motor HTOption-12
AC Geared MotorOption-21
Pneumatic, 90°Option-31
Notes
  1. To see detailed specifications for each motor option listed, click the specific 'motorization option tile' at the top of this page.
