Option-21, Synchronous AC Motor
This motor actuator can be ordered and factory-fitted to standard AGP motion and manipulation products. It is ideally suited for the 1, 2, and 4 inch linear travel, and/or continuous rotary travel feedthroughs. This is a four-lead, synchronous 115VAC motor rated to 126 oz-in of torque, and includes a fixed 10 RPM speed reducing gear box. It can be wired for switched direction reversing applications. All gears are cut to AGMA 7 standards. Pinions are extruded from a special steel with a modified long addendum tooth form to provide higher strength. Both pinions and gear teeth are case hardened and rotate upon hardened and ground steel studs. Synthetic lubrication is used throughout. Gearing is scaled to provide a maximum gear train loading.
Links to other actuator automation options include...
Option-11, DC Stepper Motor, 75 oz-in, 5V (Rotary/Linear feedthroughs)
Option-12, DC Stepper Motor, 170 oz-in, 3V (Rotary/Linear feedthroughs)
Option-31, Pneumatic Actuator, 90° Swing/Rotation (Rotary feedthroughs)
Features
- Geared AC Synchronous Motor
- AGMA 7 Standard Gears
- Sleeve Type Shaft Bearing
- Compatible with Linear, Rotary Feedthroughs
Specifications

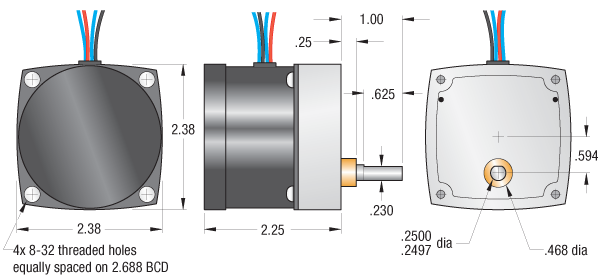

| Physical | |
| Frame Size | □ 2.38 in |
| Mount Threads, 4x | #8-32 UNC |
| Mount Hole Spacing | □ 1.900 in |
| Mount Hole BCD | Ø 2.688 in |
| Shaft Diameter | Ø .250 in |
| Weight | 1.13 lb |
| Torque | 126 oz-in |
| Speed, Output | 10 RPM |
| Electrical1 | |
| Voltage @ 60Hz | 115 VAC |
| Power, Input | 7.5 W |
| Insulation Class2 | Class A |
| Connection Type | Leads |
| Leads, Quantity3 | 4 |
| Lead Length | 9 in |
| Lead Wire Gauge | 22 AWG |
| Wiring, CW Rotation | Blue+Red |
| Wiring, CCW Rotation | Blue+Black |
| Temperature Range | |
| Motor | -10° to 40°C |
| Feedthrough, UHV | 250°C |
| Feedthrough, HV | 150°C |
| Notes |
- Required .68mfd capacitor included
- Class A (105°C)
- Black, Red, 2x Blue
