HTR-K16

Price

$741.00

Specifications

Model Number

HTR-K16

Materials

SS, SS Bellows, Anodized Aluminum

RoHS Compliant

Yes

Max. Bake Temperature

150ºC

Max. Operating Temperature

150ºC, limited by O-ring type used.

Max. Vacuum Level

1x10E-8 Torr

Axial Load

6 lb. maximum

Lateral Load

10 lb. maximum

Resolution - Rotary Scale

5° (Degrees)

Torque

250 in-oz maximum

Speed

1000 RPM

Outline Drawing (DEPRECATED)

3D Model - Zipped STEP file (DEPRECATED)

XCart Product Code

102140

stock level (qty)

997

Images

Rotary Feedthrough w/NW16 KF Flange

Variations

Product Category

ISO KF / LF Feedthroughs

Additional Categories

Motion and Manipulation

Rotary Feedthroughs

Detailed Images

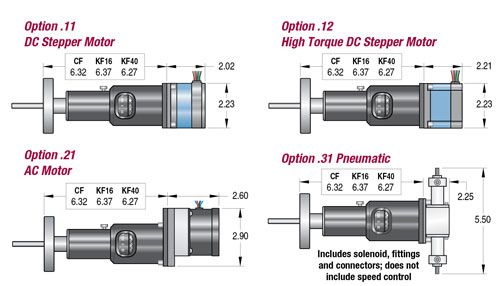

Blueprint of DC, AC and Pneumatic Motor Options
