Rotary ISO Feedthroughs

The ORR series 'elastomer sealed' rotary ISO feedthrough is an economical alternative to our bellows sealed devices. They are ideally suited for less critical applications in the high vacuum regime.

They are constructed of black-anodized aluminum and stainless steel. In vacuum bearings are dry-film lubricated with tungsten-disulfide, while are side bearings are lubricated with high-temperature Krytox lubricant. The rotation shaft is sealed with a Viton elastomer O-ring located at end opposite vacuum mounting flange.

Standard rotary feedthroughs are fitted with a manual actuator, and are also available with an air-side shaft extension for added drive flexibility.

Section (Layout)
Left Column Content
Callout Image

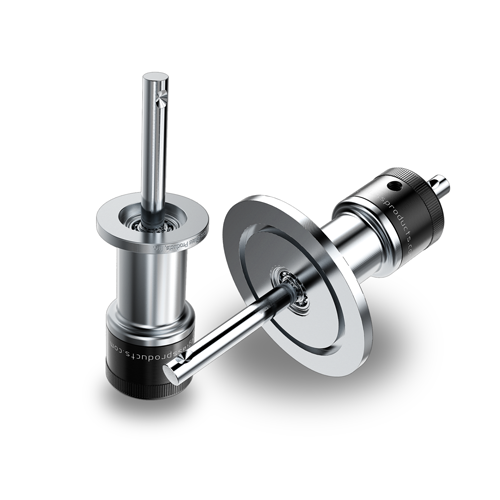

Elastomer sealed rotary motion feedthroughs w/ISO NW Flanges
Image Callout
ORR-1/4-K16 Rotary Motion Feedthrough w/ISO NW16 Flange
120
194
Precision Bearing Shaft Support
171
220
Standadrd and Extended-Shaft configurations
429
171
Precision Ground, .250 Inch shaft diameter with set-screw dimples
170
376
ORR-1/4-K40-ES Extended Shaft Rotary Motion Feedthrough w/ISO NW40 Flange
349
379
Text

Rotary ISO Feedthroughs

The ORR series 'elastomer sealed' rotary ISO feedthrough is an economical alternative to our bellows sealed devices. They are ideally suited for less critical applications in the high vacuum regime.

They are constructed of black-anodized aluminum and stainless steel. In vacuum bearings are dry-film lubricated with tungsten-disulfide, while are side bearings are lubricated with high-temperature Krytox lubricant. The rotation shaft is sealed with a Viton elastomer O-ring located at end opposite vacuum mounting flange.

Standard rotary feedthroughs are fitted with a manual actuator, and are also available with an air-side shaft extension for added drive flexibility.

Right Column Content
Text

Features

  • Economical alternative to bellows seal
  • High temperature rated to 150°C
  • HV compatible construction
  • Conflat® and ISO compatible mounts
  • Manual actuator
  • Continuous 360° rotary motion
  • Viton® elastomer shaft seal
  • Custom solutions on request

Specifications

Material
Body, Stainless Steel304
Actuator, Anodized Aluminum2011
Shaft Seal, ElastomerViton®
Vacuum Range
HV, High vacuum1x10E-8 Torr
Temperature Range 1
Feedthrough150°C
Flange, Conflat®450°C
Flange, ISO150°C
Load
Axial, Maximum5 lb
Lateral, Maximum 25 lb
Resolution
Rotary ScaleNone
Notes
  1. Overall assembly ratings must be adjusted to that of its lowest rated component. For cryogenic service, the lowest recommended temperature is -80°C
  2. With load positioned 2-Inches from flange sealing face
