Rotary Feedthroughs / Elastomer Sealed Shaft

The ORR series 'elastomer sealed' rotary motion feedthroughs is an economical alternative to our bellows sealed devices. They are ideally suited for less critical applications in the high vacuum regime.

They are constructed of black-anodized aluminum and stainless steel. In vacuum bearings are dry-film lubricated with tungsten-disulfide, while air side bearings are lubricated with high-temperature Krytox® lubricant. The rotation shaft is sealed with a Viton® elastomer O-ring located at end opposite vacuum mounting flange.

Standard rotary feedthroughs are fitted with a manual actuator, and are also available with an air-side shaft extension for added drive flexibility.

These rotary feedthroughs are available on Conflat® compatible CF style metal seal or ISO-KF elastomer seal flanges.

Section (Layout)
Left Column Content
Callout Image

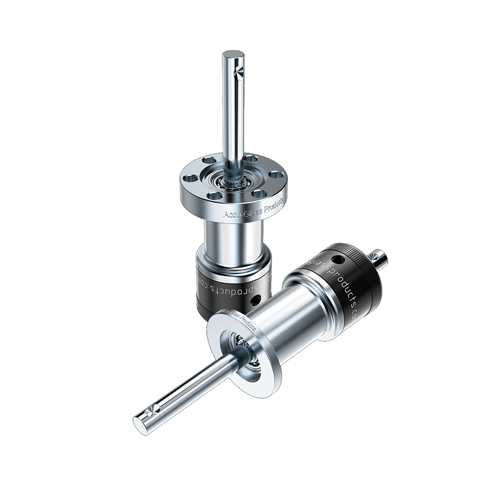

Elastomer sealed rotary shaft feedthroughs
Image Callout
ORR-1/4-133 Rotary Motion Feedthrough w/1.33 CF Flange
195
160
Precision Bearing Shaft Support
249
178
Standadrd and Extended-Shaft configurations
382
246
Precision Ground, .250 Inch shaft diameter with set-screw dimples
141
435
ORR-1/4-K16-ES Rotary Motion Feedthrough w/ISO NW 16 Flange
309
351
Text

Rotary Feedthroughs / Elastomer Sealed Shaft

The ORR series 'elastomer sealed' rotary motion feedthrough is an economical alternative to our bellows sealed devices. They are ideally suited for less critical applications in the high vacuum regime.

They are constructed of black-anodized aluminum and stainless steel. In vacuum bearings are dry-film lubricated with tungsten-disulfide, while air side bearings are lubricated with high-temperature Krytox® lubricant. The rotation shaft is sealed with a Viton® elastomer O-ring located at end opposite vacuum mounting flange.

Standard rotary feedthroughs are fitted with a manual actuator, and are also available with an air-side shaft extension for added drive flexibility.

These rotary feedthroughs are available on Conflat® compatible CF style metal seal or ISO-KF elastomer seal flanges.

Right Column Content
Text

Features

  • Economical alternative to bellows seal
  • High temperature rated to 150°C
  • HV compatible construction
  • Conflat® and ISO compatible mounts
  • Manual actuator
  • Continuous 360° rotary motion
  • Viton® elastomer shaft seal
  • Custom solutions on request

Specifications

Material
Body, Stainless Steel304
Actuator, Anodized Aluminum2011
Shaft Seal, ElastomerViton®
Vacuum Range
HV, High vacuum1x10E-8 Torr
Temperature Range 1
Feedthrough150°C
Flange, Conflat®450°C
Flange, ISO150°C
Load
Axial, Maximum5 lb
Lateral, Maximum 25 lb
Resolution
Rotary ScaleNone
Notes
  1. Overall assembly ratings must be adjusted to that of its lowest rated component. For cryogenic service, the lowest recommended temperature is -80°C
  2. With load positioned 2-Inches from flange sealing face
