Air Connectors and Cables - Subminiature-C (Sub-C)

Connector to Cable assemblies are fitted with a Delrin® polymer 9-pin Sub-C female connector on one end, and non-terminated nine (9) PVC insulated wires / cables at the other.   The 9-pin female connector mates directly to the air-side of our subminiature-C feedthroughs.

Air Service Connectors are made from a Delrin® polymer material and use either of the contacts listed below.   Caution: Wires must be threaded through the connector back-piece before crimping contacts. Crimped contacts WILL NOT fit through back-piece holes.

Standard Contacts are made from a copper alloy and gold plated. They're recommended for use in our subminiature-C and subminiature-D vacuum and air-service connector products.

High Duty Cycle Contacts are standard contacts that have been reinforced with a stainless steel sleeve, which extends the contact's spring life. They're used in place of our standard contacts in applications requiring frequent and/or excessive plug/unplug cycles (3 or more cycles per day).

Section (Layout)
Left Column Content
Callout Image

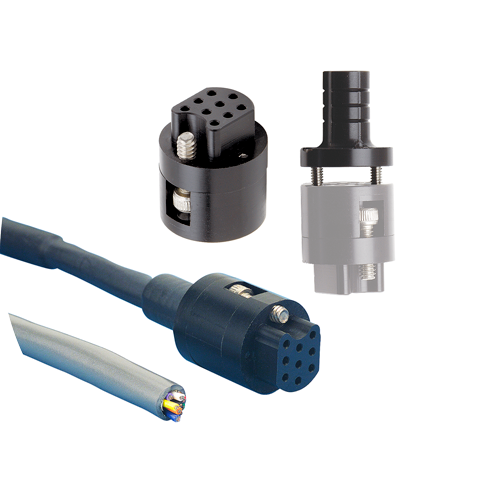

Subminiature-C Airside Connectors and Cables
Image Callout
Subminiature-C Airside Cable Assemblies
91
255
Subminiature-C Airside Connectors
220
90
Subminiature-C Airside Connector Strain Relief
347
98
Text

Subminiature-C Air-Service Cables and Connectors

Connector to Cable assemblies are fitted with a Delrin® polymer 9-pin Sub-C female connector on one end, and non-terminated nine (9) PVC insulated wires / cables at the other.   The 9-pin female connector mates directly to the air-side of our Subminiature-C feedthroughs.

Air Service Connectors are made from a black Delrin® polymer material and use either of the contacts listed above.

Caution: Wires must be threaded through the connector back-piece before crimping contacts. Crimped contacts WILL NOT fit through back-piece holes.

Standard Contacts are made from a copper alloy and gold plated. They're recommended for use in our Subminiature-C and Subminiature-D vacuum and air-service connector products.

High Duty Cycle Contacts are standard contacts that have been reinforced with a stainless steel sleeve, which extends the contact's spring life. They're used in place of our standard contacts in applications requiring frequent and/or excessive plug/unplug cycles (3 or more cycles per day).

Right Column Content
Text

Features

  • Delrin® Polymer Connectors w/Lock Screws
  • Subminiature-C 9-Pin Interface
  • High temperature rated to 80°C
  • Air compatible construction
  • Custom Solutions on Request

Specifications

Electrical 1, 2
Voltage500 VDC
Current5 A
Material
Connector, Polymer 3Delrin®
ContactsAu-Plated Cu
Vacuum Range
Air-Service OnlyN/A
Temperature Range 4
Delrin®-29° to 80°C
Notes
  1. Electrical ratings are maximum test values, with feedthrough's vacuum side at ≤ 1x10-4 Torr. Feedthroughs are intended for instrumentation applications carrying low level signal voltage and current.
  2. For proper heat dissipation, a maximum of 20% of the pins on a feedthrough may carry the maximum pin current at any given time.
  3. Delrin® is an Acetal Homopolymer (Polyoxymethylene POM) thermoplastic.
  4. Overall assembly ratings must be adjusted to that of its lowest rated component.
  5. Connectors and contacts must be purchased separately.
