Subminiature-C (Sub-C, Type-C) - Ultrahigh (UHV), High Vacuum (HV), In-Vacuum

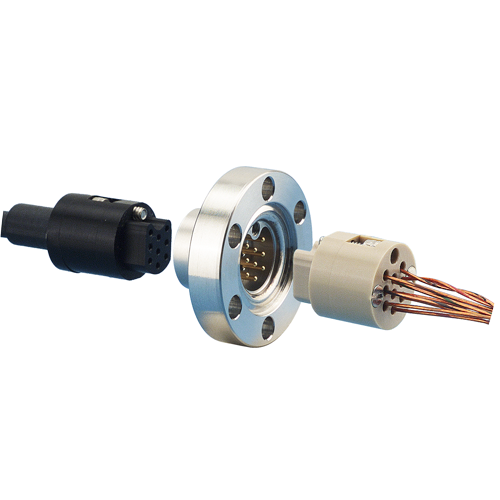

Accu-Glass Products Subminiature-C multi-pin hermetic feedthroughs (also known as Sub-C or Type-C) are designed for applications where space is limited, or where Subminiature-D (Sub D) connections will not fit. Its compact design allows installation into a 1.33 inch CF metal seal and ISO-NW16KF elastomer seal vacuum flanges.
Nine gold-plated pins are arranged in a straight through pin-to-pin design and are hermetically sealed and electrically insulated in a stainless steel shell using the latest in glass-ceramic bonding technology.
Air and vacuum side connectors are fitted with a captured stainless steel socket-head screw providing a means of securely locking connectors to a mating feedthrough. On the vacuum side, Kapton® insulated cable assemblies fitted with PEEK connectors are available to meet the rigorous demands of (UHV) ultrahigh vacuum as well as (HV) High Vacuum environments. In-vacuum connector screws are vented where required and the feedthrough's threaded-boss doubles as a connection polarizing key. Air to vacuum pin position is identified with a permanent surface mark, which clearly locates pin assignments. Subminiature-C feedthroughs and cables are sold individually or as kits, where each kit contains a feedthrough and both vacuum and air side cable assemblies.
| Electrical | |
|---|---|
| 500 VDC 5 Amps* |
* For proper heat dissipation, a maximum of 20% of the pins on a feedthrough may carry the maximum pin current at any given time. * Electrical ratings are maximum test values, with feedthrough’s vacuum side at ≤ 1x10-4 Torr. Feedthroughs are intended for instrumentation applications carrying low level signal voltage and current. | |
| Material | |
|---|---|
|
|
| * Peek is a Polyether-ether-ketone thermoplastic. | |
| Vacuum Range | |
|---|---|
| 1x10-10 Torr 1x10-8 Torr |
| Temperature Range | |
|---|---|
|
|
| * Overall assembly ratings must be adjusted to that of the lowest rated component. |
Air and vacuum side connectors are fitted with a captured stainless steel socket-head screw providing a means of securely locking connectors to a mating feedthrough. On the vacuum side, Kapton® insulated cable assemblies fitted with PEEK connectors are available to meet the rigorous demands of ultrahigh vacuum environments. In-vacuum connector screws are vented where required and the feedthrough's threaded-boss doubles as a connection polarizing key. Air to vacuum pin position is identified with a permanent surface mark, which clearly locates pin assignments. Subminiature-C feedthroughs and cables are sold individually or as kits, where each kit contains a feedthrough and both vacuum and air side cable assemblies.
Subminiature-C (Sub-C, Type-C) - Ultrahigh (UHV), High Vacuum (HV), In-Vacuum
Accu-Glass Products Subminiature-C™ multipin hermetic feedthroughs (also known as Sub-C or Type-C multipin feedthroughs) are designed for applications where space is limited or where Subminiature-D (Sub-D) connections will not fit. This compact and unique 9-pin design allows installation into 1.33-inch CF metal seal and ISO NW16 KF elastomer seal vacuum flanges.
Nine gold-plated pins are arranged in a straight-through pin-to-pin design that are hermetically sealed and electrically insulated into a stainless-steel shell using the latest in glass-ceramic bonding technology.
Subminiature-C™ feedthroughs and cables are sold individually or as kits, where each kit contains a feedthrough with both vacuum and air side cable assemblies. Air and vacuum side connectors are fitted with captured stainless steel socket head screws that provide a secure means for locking them to their mating feedthroughs. On the vacuum side, Kapton® insulated cable assemblies fitted with PEEK connectors are available to meet the rigorous demands of (UHV) ultrahigh vacuum environments. In-vacuum connector locking screws are vented and where the feedthrough’s screw-boss also functions as a connection polarizing key. The air to vacuum 'pin-one' position is identified with a permanent surface mark for clear and simple pin assignment.
Warning: Please review 'Glow Discharge Graph' and how voltage rating is affected by pressure change.
Features
- Subminiature-C™ 9-Pin Interface
- High temperature rated to 250°C
- UHV compatible construction
- Conflat® and ISO NW compatible mounts
- Kapton® Insulated Vacuum Cables
- PEEK or Macor® Connectors with Locking Screws
- Air Service Cables / Connectors
- Custom Solutions on Request
Specifications
| Electrical 1, 2 | |
| Voltage | 500 VDC |
| Current | 5 A |
| Material | |
| Shell | 304 Stainless Steel |
| Pins | Au Plated, Ni-Fe |
| Seal / Insulator | Glass-Ceramic |
| Connector, Air | Delrin® |
| Connector, Vacuum3 | PEEK |
| Connector, Hi-Temp | Macor® Ceramic |
| Vacuum Range 4 | |
| UHV, Ultrahigh Vacuum | 1x10-10 Torr |
| HV, High Vacuum | 1x10-8 Torr |
| Temperature Range 5 | |
| Feedthrough | -200° to 250°C |
| Flange, CF | -200° to 450°C |
| Flange, ISO NW | -26° to 150°C |
| Connector, Delrin® | 80°C |
| Connector, PEEK | 250°C |
| Connector, Macor® Ceramic | 400°C |
| Thermal Gradient | 25°C / Minute |
| Notes |
- Electrical ratings are maximum test values, with feedthrough's vacuum side at ≤ 1x10-4 Torr. Feedthroughs are intended for instrumentation applications carrying low level signal voltage and current.
- For proper heat dissipation, a maximum of 20% of the pins on a feedthrough may carry the maximum pin current at any given time.
- PEEK is a polyether ether ketone thermoplastic.
- Leak tested to 5x10-10 Standard cc/sec of He.
- Overall assembly ratings must be adjusted to that of its lowest rated component. For cryogenic service, the lowest recommended temperature is -200°C
- Unless designated a 'kit,' connectors and cable assemblies are not included with feedthrough and must be purchased separately.
