Linear Push-Pull Feedthroughs

Push-Pull Vacuum Feedthrough Mounted on ISO or CF Flanges

Accu-Glass Products push-pull linear motion feedthroughs are designed to provide quick action linear motion. A knob is provided on the end of a stainless steel shaft to allow the operator to push the shaft in or out to the desired position. Linear movement is measured in 0.025 inch increments on the linear body scale, which is laser etched into the black anodized aluminum finish. The linear position can be locked at any point with a convenient thumb wheel located on the side of the body.

They are constructed of aluminum and stainless steel, where only stainless steel surfaces are exposed to the in-vacuum environment.

In-vacuum bearings are film lubricated with a (UHV) Ultra High vacuum compatible Krytox® lubricant, while air side bearings are lubricated with high-temperature Krytox® lubricant. The linear shaft is sealed with an AM-350 edge-welded bellows.

Push pull feedthroughs are available on Conflat® style CF metal seal or ISO-KF style elastomer seal flanges.

Section (Layout)
Left Column Content
Callout Image

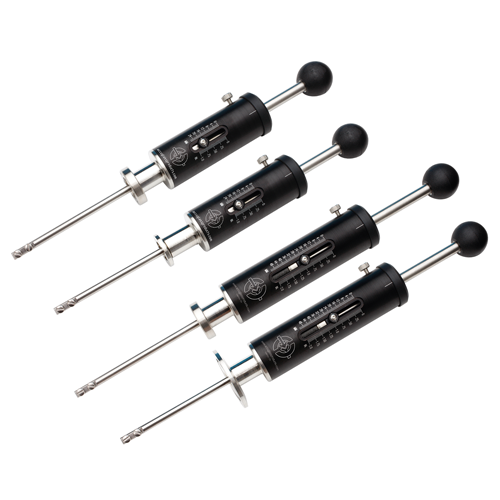

Push-Pull Linear Feedthroughs
Image Callout
PHTL-133-1, UHV Manual 1-Inch Travel Feedthrough
171
139
PHTL-K16-1, HV Manual 1-Inch Travel Feedthrough
284
157
PHTL-133-2, UHV Manual 2-Inch Travel Feedthrough
398
201
PHTL-K40-2, HV Manual 2-Inch Travel Feedthrough
126
441

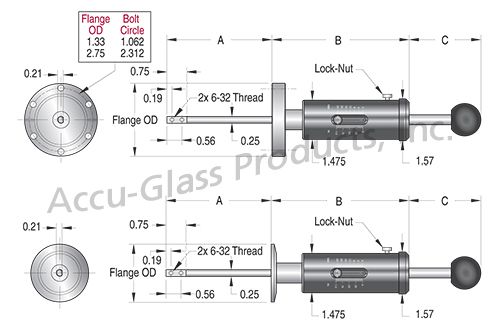

Travel Lock-Nut
365
270
Hard Plastic Push-Pull Knob
462
254
Text

Push-Pull Linear Feedthroughs on CF or ISO NW Flanges

Accu-Glass Products push-pull linear motion feedthroughs are designed to provide quick action linear motion. A knob is provided on the end of a stainless steel shaft to allow the operator to push the shaft in or out to the desired position. Linear movement is measured in 0.025 inch increments on the linear body scale, which is laser etched into the black anodized aluminum finish. The linear position can be locked at any point with a convenient thumb wheel located on the side of the body.

They are constructed of aluminum and stainless steel, where only stainless steel surfaces are exposed to the in-vacuum environment.

In-vacuum bearings are film lubricated with a (UHV) Ultra High vacuum compatible Krytox® lubricant, while air side bearings are lubricated with high-temperature Krytox® lubricant. The linear shaft is sealed with an AM-350 edge-welded bellows.

Push pull feedthroughs are available on Conflat® style CF metal seal or ISO-KF style elastomer seal flanges.

Right Column Content
Text

Features

  • Precision bearings guides — no bushings
  • 1, and 2 inch linear travel
  • High temperature rated to 250°C
  • UHV compatible construction
  • Conflat® and ISO compatible mounts
  • Edge-welded metal bellows seal
  • Push-Pull Actuator
  • Linear travel position lock
  • Custom solutions on request

Specifications

Material
Body, Stainless Steel304
Housing, Anodized Aluminum2011
Bellows, Edge-WeldedAM-350
Vacuum Range
UHV, Ultrahigh vacuum1x10E-10 Torr
HV, High vacuum1x10E-8 Torr
Temperature Range 1
Feedthrough250°C
Flange, Conflat®450°C
Flange, ISO150°C
Load
Axial, Maximum5 lb
Lateral, Maximum 25 lb
Resolution
Linear Scale.025 Inch
Notes
  1. Overall assembly ratings must be adjusted to that of its lowest rated component. For cryogenic service, the lowest recommended temperature is -80°C
  2. With load positioned 2-Inches from flange sealing face.
