0.250 Rotary Feedthrough Accessories

Accu-Glass Products .250 feedthrough accessories are an assortment of in-vacuum hardware components to assist the user when installing motion feedthroughs. Various types of drive shaft components are provided, including bellows couplings, universal joints, extension couplings, bearings, bearing mounts, ground shaft stock, collars, and vented screws.

If you require custom designed hardware, please contact our technical sales staff with your inquiries.

Section (Layout)
Left Column Content
Callout Image
motion accessories
Image Callout
1/8 and 1/4-Inch Ground Shaft Stock
87
74
Shaft Couplers and Collars
202
141
Rotary and Linear Bearings
364
133
Universal Joints and Miter/Bevel Gears
171
384
Rotary and Linear Bearing Mounts
321
388
Text

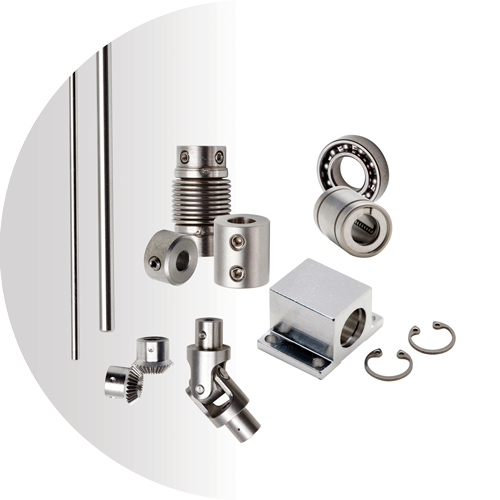

Linear / Rotary Accessories

Accu-Glass Products’ motion feed­through accessories are an assortment of in-vacuum hardware components to assist the user when installing motion feedthroughs. Various types of drive shaft components are provided, including bellows couplings, universal joints, extension couplings, bearings, bearing mounts, ground shaft stock and collars.
Vented screws for the installation of bearing mounts are also available. If you require custom designed hardware, please contact our technical sales staff with your inquiries.

1/4-Inch Shaft Deflection Curves
Right Column Content
Text

Features

  • Linear and rotary Accessories
  • 1/8 and 1/4-Inch shaft sizes
  • Motors, Rotary and Linear AC, DC
  • Pneumatic actuator, 90° Rotary
  • Shaft deflection data
  • UHV and HV compatible construction
  • Custom solutions on request

Specifications

Material
Shafts, Stainless Steel304
Mounts, Aluminum6061
Vacuum Range
UHV, Ultrahigh vacuum1x10E-10 Torr
HV, High vacuum1x10E-8 Torr
Temperature Range 1
Up to250°C
Motors, Air-Service65°C
Notes
  1. Overall assembly ratings must be adjusted to that of its lowest rated component. For cryogenic service, the lowest recommended temperature is -80°C
