Subminiature-D or Sub-D

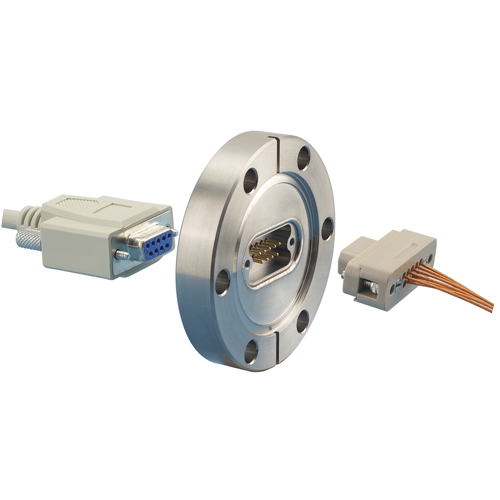

UHV 9, 15, 25, and 50-pin Subminiature-D (Sub-D) hermetic feedthroughs (vacuum feedthrough) are constructed with multi-pin arrangements per Mil-DTL-24308 (formerly Mil-C-24308) specification. All pins are gold-plated and arranged in a straight-through pin-to-pin design. Hermetically sealed and electrically insulated into a stainless steel shell using the latest in glass-ceramic bonding technology (ceramic feedthrough).
Multi-pin Sub-D Vacuum Feedthrough Connectors and Assemblies
Ultrahigh vacuum compatible Sub-D wire assemblies are fitted with PEEK (polyether-etherketone) polymer connectors and Kapton® insulated ribbon cable to meet the rigorous demands of ultrahigh vacuum environments. Each subminiature-D vacuum connector includes two (2) captured stainless steel socket head screws that securely lock a connector to its mating electrical feedthrough. To eliminate virtual leaks, in-vacuum captured screws are vented where required.
Introducing the HV Bulkhead-D multi-pin feedthrough Product Line
AGP's HV Bulkhead-D hermetic electrical feedthrough was developed for high-vacuum flat-chamber-wall applications where conventional ISO NW KF or LF flanges are either not available, or just not practical. Our universal 2x3.5 inch rectangular flange, the Bulkhead-D flange, accommodates standard 9, 15, 25, or 50-pin subminiature-D electrical feedthroughs, and shares the same gasket and fastening accessories... providing simple and convenient interchangeability.
| Electrical | |
|---|---|
| 500 VDC 5 Amps* |
| * For proper heat dissipation, a maximum of 20% of the pins on a feedthrough may carry the maximum pin current at any given time. |
| Material | |
|---|---|
|
|
| * Peek is a Polyether-ether-ketone thermoplastic. |
| Vacuum Range | |
|---|---|
| 1x10-10 Torr 1x10-8 Torr |
| Temperature Range | |
|---|---|
|
|
| * Overall assembly ratings must be adjusted to that of the lowest-rated component. |
Subminiature-D, also referred to as D-Sub or Sub-D multi-pin electrical feedthrough assemblies with up to 250 pin configurations are routinely fabricated. Custom solutions with over 1,000 pins have also been engineered and produced.
Tip: Accu-Glass Products Conflat CF and/or ISO KF/LF Conical Reducers are ideally suited for the expansion of vacuum feedthrough capacity on smaller chamber flanges like fitting a 50-pin 4.50-inch CF flange mounted feedthrough using a 2.75-inch CF chamber port. Click on the following links to access CF Conical Reducers, and/or ISO NW Conical Reducers.
Subminiature-D or Sub-D
UHV 9, 15, 25, and 50-pin Subminiature-D (Sub-D) hermetic feedthroughs (vacuum feedthrough) are constructed with multi-pin arrangements per Mil-DTL-24308 (formerly Mil-C-24308) specification. All pins are gold-plated and arranged in a straight-through pin-to-pin design. Hermetically sealed and electrically insulated into a stainless steel shell using the latest in glass-ceramic bonding technology (ceramic feedthrough).
Multi-pin Sub-D Vacuum Feedthrough Connectors and Assemblies
Ultrahigh vacuum compatible Sub-D wire assemblies are fitted with PEEK (polyether-etherketone) polymer connectors and Kapton® insulated ribbon cable to meet the rigorous demands of ultrahigh vacuum environments. Each subminiature-D vacuum connector includes two (2) captured stainless steel socket head screws that securely lock a connector to its mating electrical feedthrough. To eliminate virtual leaks, in-vacuum captured screws are vented where required.
Introducing the HV Bulkhead-D multi-pin feedthrough Product Line
AGP's HV Bulkhead-D hermetic electrical feedthrough was developed for high-vacuum flat-chamber-wall applications where conventional ISO NW KF or LF flanges are either not available, or just not practical. Our universal 2x3.5 inch rectangular flange, the Bulkhead-D flange, accommodates standard 9, 15, 25, or 50-pin subminiature-D electrical feedthroughs, and shares the same gasket and fastening accessories... providing simple and convenient interchangeability.
Features
- Subminiature-D 9 to 100 Pin configuration
- High temperature rated to 250°C
- UHV compatible construction
- Conflat® and ISO NW compatible mounts
- Kapton® insulated vacuum cables
- PEEK connector with locking screws
- Air-service cable assemblies
- Custom solutions on request
Specifications
| Electrical | |
| Voltage 1, Maximum | 500 VDC |
| Current 2, Maximum | 5 A |
| Material | |
| Shell, Stainless Steel | 304 |
| Pins, Au plated | Ni-Fe |
| Seal / Insulator | Glass-Ceramic |
| Connector, Air | Composite |
| Connector, UHV 3 | PEEK |
| Connector, HV 3 | DAP / Stainless |
| Vacuum Range 4 | |
| UHV, Ultrahigh vacuum | 1x10E-10 Torr |
| HV, High vacuum | 1x10E-8 Torr |
| Temperature Range 5 | |
| Feedthrough | -200 to 250°C |
| Flange, Conflat® | -200 to 450°C |
| Flange, ISO | 150°C |
| Connector / Cable, Air | 80°C |
| Connector / Cable, UHV PEEK | 250°C |
| Connector / Cable, HV, DAP | 125°C |
| Thermal Gradient, Maximum | 25°C/minute |
| Notes |
- Electrical ratings are maximum test values, with vacuum side at ≤ 1x10-4 Torr. Feedthroughs are intended for instrumentation applications carrying low level signal voltage and current.
- Per pin maximum @ 20°C. For proper heat dissipation, a maximum of 20% of pins on a feedthrough may carry the maximum pin current at any given time.
- PEEK is a polyether ether ketone thermoplastic. DAP is a glass-filled diallyl phthalate.
- Leak tested to 5x10-10 Standard cc/sec of He.
- Overall assembly ratings must be adjusted to that of its lowest rated component. For cryogenic service, the lowest recommended temperature is -200°C
- Unless designated a 'kit,' connectors and cable assemblies are not included with feedthrough and must be purchased separately.
