Subminiature Power-D and Mil-C-5015
AGP offers two styles of Power hermetic feedthroughs ideally suited for Ultrahigh (UHV) or High In-Vacuum (HV) applications requiring either 10 or 20 AMPs.
20-AMP power feedthroughs along with vacuum and air service cable assemblies and components are offered in a Subminiature Power-D, 3, or 5 pin standard configuration.
10-AMP power feedthroughs along with vacuum and air service cable assemblies and components are offered in a Mil-C-5015 circular, 3, or 6 pin standard configuration.
Please click one of the categories below for more detailed information about that product range.
| Electrical | |
|---|---|
| 500 VDC 700 VDC 20 Amps* 10 Amps* |
| * For proper heat dissipation, a maximum of 20% of the pins on a feedthrough may carry the maximum pin current at any given time. |
| Material | |
|---|---|
|
|
| * Peek is a Polyether-ether-ketone thermoplastic. |
| Vacuum Range | |
|---|---|
| 1x10-10 Torr 1x10-8 Torr |
| Temperature Range | |
|---|---|
|
|
| * Overall assembly ratings must be adjusted to that of the lowest-rated component. |
Ratings for in vacuum PEEK cable assemblies and Air-Service Cables are listed on the next pages.
This category is actually two different styles of feedthroughs. Please click one of the categories below for more detailed information about that product range.

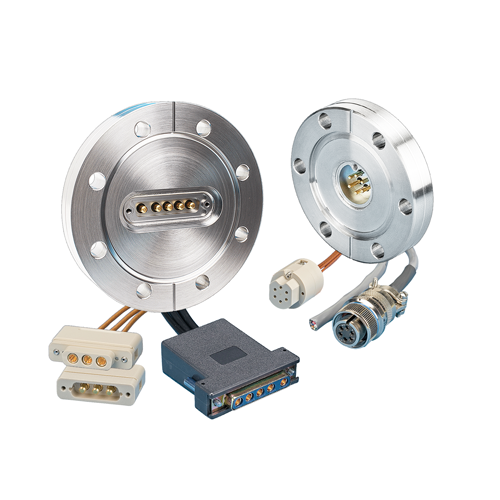

Power-D™ / Mil-C-5015 High Power Feedthroughs
AGP offers two styles of 10 and 20 amp high power/current hermetic feedthroughs ideally suited for Ultrahigh (UHV) or High In-Vacuum (HV) applications requiring high power inputs.
20-Amp power feedthroughs with mating vacuum and air service cable assemblies and components are offered in Subminiature Power-D™ 3 and 5 pin configurations.
10-Amp power feedthroughs with mating vacuum and air service cable assemblies and components are offered with Mil-DTL-5015 circular connectors, in 3 and 6 pin configurations.
Please click on the product category tiles listed above for detailed information on each of these product offerings.
Features
- 10 and 20 Amp High Current Feedthroughs
- Subminiature Power-D™ 3 and 5-Pin Interface
- MIL-DTL-5015 3 and 6-Pin Interface
- High temperature rated to 250°C
- UHV compatible construction
- Conflat® and ISO NW compatible mounts
- Kapton® insulated vacuum cables
- PEEK connector with locking screws
- Air and Vacuum service cables / Connectors
- Custom solutions on request
Specifications
| Electrical | |
| Voltage 1, Maximum | |
| Power-D™ | 500 VDC |
| MIL_DTL-5015 | 700 VDC |
| Current, Maximum | |
| Power-D™ | 20 A |
| MIL_DTL-5015 | 10 A |
| Material | |
| Shell, Stainless Steel | 304 |
| Pins, Au plated | Ni-Fe |
| Seal / Insulator | Glass-Ceramic |
| Connector, Air | Delrin® |
| Connector, UHV 2 | PEEK |
| Vacuum Range | |
| UHV, Ultrahigh vacuum | 1x10E-10 Torr |
| HV, High vacuum | 1x10E-8 Torr |
| Temperature Range 3 | |
| Feedthrough | 250°C |
| Flange, Conflat® | 450°C |
| Flange, ISO | 150°C |
| Connector / Cable, Air | 80°C |
| Connector / Cable, UHV PEEK | 250°C |
| Thermal Gradient, Maximum | 25°C/minute |
| Notes |

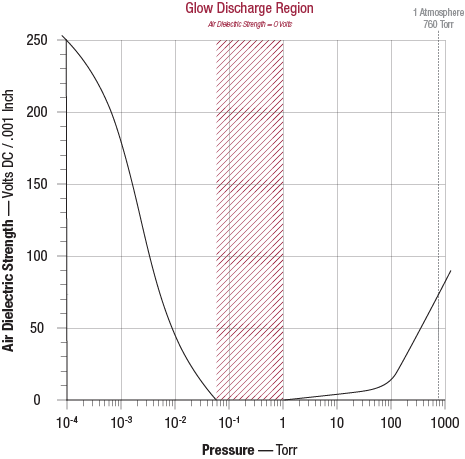

- Electrical ratings are maximum test values, with vacuum side at ≤ 1x10-4 Torr. Feedthroughs are designed for high power applications.
- PEEK is a polyether ether ketone thermoplastic.
- Overall assembly ratings must be adjusted to that of its lowest rated component.
- Unless designated a 'kit,' connectors and cable assemblies are not included with feedthrough and must be purchased separately.
