19 Pin Circular (Mil-C-26482) Components

AGP's 19-Pin circular instrumentation hermetic feedthroughs are constructed with a pin arrangement per Mil-C-26482 specification. Nineteen gold-plated pins are arranged in a straight-through pin-to-pin design, hermetically sealed and electrically insulated into a stainless steel shell (19 pin feedthrough) using the latest in glass-ceramic bonding technology.

Mil-C-26482 feedthroughs and cable assemblies are sold individually or as complete kits, wherein each kit contains a 19 pin feedthrough and both vacuum and air side cable assemblies. Vacuum compatible cable assemblies are fitted with PEEK (polyether-etherketone) polymer connectors and Kapton® insulated ribbon cable to meet the demands of ultrahigh vacuum environments. Vacuum connector includes a captured stainless steel socket head screw that securely locks it to a mating feedthrough. Captured in-vacuum screws are vented where required and the feedthrough’s screw-boss also doubles as a polarizing key. Feedthrough’s air-to-vacuum pin position is identified with a permanent surface mark to aid pin assignment. Air-service cable assemblies have standard bayonet type Mil-C-26482 circular connectors.

19 Pin Circular Mil-C-26482 Feedthrough Specifications
Electrical
  • Voltage, Maximum
  • Current, Per Pin Maximum @ 20ºC

500 VDC
5 Amps*
*  For proper heat dissipation, a maximum of 20% of the pins on a feedthrough may carry the maximum pin current at any given time.
19 Pin Circular Mil-C-26482 Feedthrough Material Specifications
Material
  • Shell
  • Pins
  • Seal / Insulator
  • Connector, Air
  • Connector, Vacuum


304 Stainless Steel
Au plated, Ni-Fe alloy
Glass-Ceramic
Delrin®
Peek*

*  Peek is a Polyether-ether-ketone thermoplastic.
Feedthrough Vacuum Range Specifications
Vacuum Range
  • UHV, Ultrahigh vacuum
  • HV, High vacuum

1x10-10 Torr
1x10-8 Torr
Feedthrough Temperature Range Specifications
Temperature Range
  • Feedthrough
  • Flange Mount, Conflat
  • Flange Mount, ISO
  • Connector / Cable, Air
  • Connector / Cable, Vacuum
  • Thermal Gradient


-200ºC to 250ºC
-200ºC to 450ºC
-26ºC to 150ºC
80ºC
250ºC
25ºC / Minute Maximum

* Overall assembly ratings must be adjusted to that of the lowest-rated component.

Custom in-vacuum and/or air-service cable assemblies are available on request.

Section (Layout)
Left Column Content
Callout Image

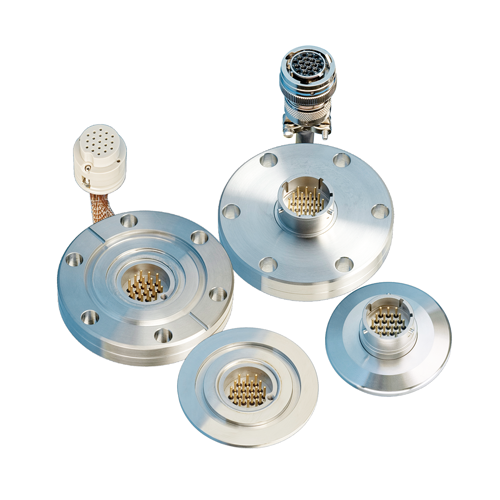

Mil-DTL-26482 Feedthroughs
Image Callout
UHV female cable (6) assembly, 110230, PEEK connector and Kapton® insulated wire
96
123
Air-service cable (6) assembly, 110232, nickel-plated female aluminum connector and PVC insulated cable.
301
44
UHV Feedthrough, 110210 Conflat ® compatible flange
359
153
UHV Feedthrough, 110210 Conflat® compatible flange
106
359
HV Feedthrough, 110220 ISO NW compatible flange
344
418
Text

19 Pin Circular (Mil-C-26482) Components

AGP's 19-Pin circular instrumentation hermetic feedthroughs are constructed with a pin arrangement per Mil-C-26482 specification. Nineteen gold-plated pins are arranged in a straight-through pin-to-pin design, hermetically sealed and electrically insulated into a stainless steel shell (19 pin feedthrough) using the latest in glass-ceramic bonding technology.

Mil-C-26482 feedthroughs and cable assemblies are sold individually or as complete kits, wherein each kit contains a 19 pin feedthrough and both vacuum and air side cable assemblies. Vacuum compatible cable assemblies are fitted with PEEK (polyether-etherketone) polymer connectors and Kapton® insulated ribbon cable to meet the demands of ultrahigh vacuum environments. Vacuum connector includes a captured stainless steel socket head screw that securely locks it to a mating feedthrough. Captured in-vacuum screws are vented where required and the feedthrough’s screw-boss also doubles as a polarizing key. Feedthrough’s air-to-vacuum pin position is identified with a permanent surface mark to aid pin assignment. Air-service cable assemblies have standard bayonet type Mil-C-26482 circular connectors.

Right Column Content
Text

Features

  • Mil-DTL-26482 19-Pin Interface
  • High temperature rated to 250°C
  • Conflat® and ISO NW compatible mounts
  • Kapton® insulated vacuum cables
  • PEEK connector with locking screws
  • Air-service cables / Connectors
  • UHV compatible construction
  • Custom solutions on request

Specifications

Electrical
Voltage 1, Maximum500 VDC
Current 2, Maximum5 A
Material
Shell, Stainless Steel304
Pins, Au-PlatedNi-Fe
Seal / InsulatorGlass-Ceramic
Connector, Air Ni-PlatedAl
Connector, UHV 3PEEK
Vacuum Range 4
UHV, Ultrahigh vacuum1x10E-10 Torr
HV, High vacuum1x10E-8 Torr
Temperature Range 5
Feedthrough-200 to 250°C
Flange, Conflat®-200 to 450°C
Flange, ISO-26 to 150°C
Connector / Cable, Air80°C
Connector / Cable, UHV PEEK250°C
Thermal Gradient, Maximum25°C/minute
Notes
  1. Electrical ratings are maximum test values, with vacuum side at ≤ 1x10-4 Torr. Feedthroughs are intended for instrumentation applications carrying low level signal voltage and current.
  2. For proper heat dissipation, a maximum of 20% of the pins on a feedthrough may carry the maximum pin current at any given time.
  3. PEEK is a polyether ether ketone thermoplastic.
  4. Leak tested to 5x10-10 Standard cc/sec of He.
  5. Overall assembly ratings must be adjusted to that of its lowest rated component. For cryogenic service, the lowest recommended temperature is -200°C
  6. Unless designated a 'kit,' connectors and cable assemblies are not included with feedthrough and must be purchased separately.
