Price
$56.00
Specifications
Model Number
CXS-1
Materials
Cu alloy, Au-plt
RoHS Compliant
Yes
Max. Bake Temperature
250ºC
Max. Operating Temperature
250ºC
Max. Vacuum Level
1x10E-10 Torr
Number Contacts
1
Gender
Female
Contact Material
Cu alloy, Au-plt
Catalog Page

31, 33

Assembly Drawing

PDF iconA100909_RevA

Outline Drawing (DEPRECATED)

100909

XCart Product Code
100909
stock level (qty)
155
Images
Coax Contact - Female (TYPE: T-4)
Variations
Product Category
UHV Components
Additional Categories
Coaxial
Subminiature Coax-D
UHV Components
Air Components
Electrical Contacts
Coaxial / T-4
Detailed Images

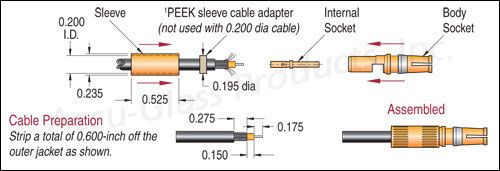

Subminiature-D Coaxial Air Cable Preparation

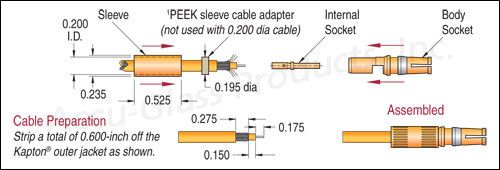

Subminiature-D Coaxial Vacuum Cable Preparation
Outline Drawing
100909.pdf (83.65 KB)
a100909.pdf (102.92 KB)
XCart Product ID
16389
